Full Series 10W To 200W LED Floodlight High Quality 5 Years
warranty UL CE DLC Approved Garden Floodlight
Application Of LED Flood Light:
Our LED Flood Lights can be Suitable for Warehouses , workshop,
highway toll station, gas station,
supermarket, exhibition hall, gymnasium, and other industrial and
commercial
lighting purposes. More Stablely and Non-Maintanence.
Product Parameter:
| Model | SKLEDTG10W010 | SKLEDTG20W010 | SKLEDTG30W010 | SKLEDTG50W010 |
| Input Voltage | 100-277VAC 50/60Hz |
| Input Current | 0.046(220V) | 0.1(220V) | 0.14(220V) | 0.23(220V) |
| Input Watt(W) | 10±5% | 20±5% | 30±5% | 50±5% |
| Lumens(Lm) | 1000 | 2300 | 3500 | 5500 |
| Product Size | 140*107*32mm | 190*152*40mm | 200*167*40mm | 265*220*48mm |
| N.W./G.W.(kg) | 0.45/0.65 | 1.11/1.45 | 2.04/2.5 | 3.1/3.8 |
| Beam Angle | 120 Degree |
| Lumen Maintenance (2000Hrs) |
98% |
| IP Class | IP65 |
| Working Temp. | -25℃--40℃ |
| LED Chips | Or LG |
| Storage Environment | -40℃~85℃ RH10%~95% |
| Model | SKLEDTG80W010 | SKLEDTG100W010 | SKLEDTG150W010 | SKLEDTG200W010 |
| Input Voltage | 100-277VAC 50/60Hz |
| Input Current | 0.38(220V) | 0.46(220V) | 0.7(220V) | 0.95(220V) |
| Input Watt(W) | 80±5% | 100±5% | 150±5% | 200±5% |
| Lumens(Lm) | 8800 | 11200 | 15600 | 19500 |
| Product Size | 300*245*50mm | 345*295*60mm | 365*330*60mm | 400*360*60mm |
| N.W./G.W(kg) | 3.1/3.8 | 3.95/4.8 | 5.35/6.1 | 6.1/7.1 |
| Beam Angle | 120 degree |
| Lumen Maintenance (2000Hrs) |
98% |
| IP Class | IP65 |
| Working Temp. | -25℃--40℃ |
| LED Chips | Or LG |
| Storage Environment | -40℃~85℃ RH10%~95% |

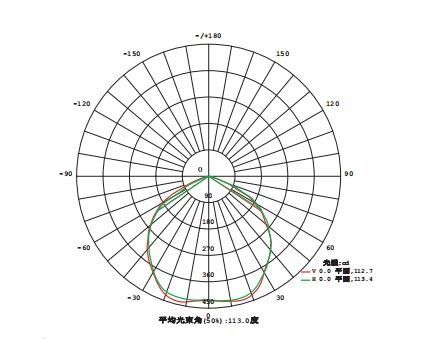

10W Flood Light Photometric Distribution:
Packing Way :
Features of Flood Light:
1. Our Floodlight High Power suply 80w-1000W are availabe. Can
replace Traditional HPS, MHL traditional lamps up to 2000W max.
2. All these flood lights Multiple optical ledns options:
15/30/45/60/90/120/60*135/85*135 drgree.
3. This 120lm/w Floodlight use Original Cree XTE, MeanWell driver,
5 years warranty.
4. High quality LED Flood Lighting Fixture use Die casting aluminum
housing with good heat sink, suitable for hostile environment.
5. IP65 IP rating: closed corrosion-proof silicone ring for
dustproof and waterproof
6. Flood Lamp surface with patent design, corrosion-resistant,
shake-resistant and artistic appearance
7. Modular thermal management design ensuring low LED junction
temperature.
8. Energy saving: Replace 1000w-1500w traditional lamps, saving
more than 80%
9. Eco-friendly: No lead, mercury, UV interference
10. Long lifespan: more than 50000 hours, If LED works 11-12 hours
per day, it can work over 10 years.
11. Flexible modular design, easiest installation and maintance
12. Certificate: CE, RoHS, ETL, DLC.
13. All Power IES File can be available.
14. Any projectors, we can offer free Dialux Design with our High
quality factory direct sale Floodlight.
Maintenance / Repairing Instructions:
1.Make sure LED Flood Light power has been turned off before
maintenance or repairing.
2.Clean the Floodlight cover regularly to maintain high
transmission of light.
3.Clean up the Flood lights dust from the cover and heatsink
regularly to keep sound heat
dispersion.
4.Be careful not to use water or corrosive solution for cleaning
LED Flood Lighting Fixture, preferably with a dry cloth.(Because
all of our Flood Or Projector High power flood Lamps will be tested
by 24hrs under water, it is IP 65, can wash with water).
LED Flood Lights Process:
