Professional Office LED Ceiling Grid Lights T8 Grid Fixture SMD 2835 Chip

Ask Lasest Price
Brand Name :	SNT
Model Number :	SKYG-P118/136/218/236/318/336/436
Certification :	CE ROHS
Payment Terms :	Western Union, L/C, T/T
Supply Ability :	100pcs/Day
Delivery Time :	7-10 days for qty<500pcs, 20 days for qty<2000pcs

Add to Cart

Product Details
Company Profile

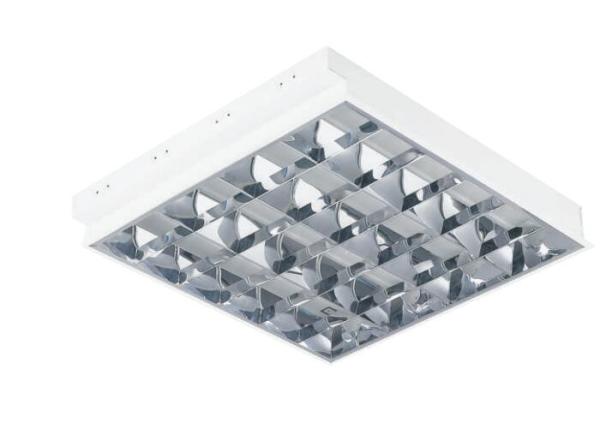

Professional Office LED Ceiling Grid Lights T8 Grid Fixture SMD 2835 Chip

LED Grill Light Grid Lamp Professional Office Light Insert T8 Grid Fixture 3 Years warranty CE Rohs Imported Reflector

The T8 Grill light can use Electronic Ballast to light on T8 Tradtional Fluorescent tubes--18W 36W. Can be 118, 136,218,236,318,336,436 Traditional Grid Lamp Fixtures.

It also can be LED Grid T8 fixture when using LED 2835SMD into Fixture Directly. High brightness very much and good profermance.

Application Of LED Grill Light:

LED Grill Light Mainly can apply in High luxry Office , Showroom, Coffee Tea Room, Exhibition Fair Light, Supermarket, Hall Plaza, All Indoor Lighting Area as high brightness lumen requirement place.

Easy to install and maintenance.

The T8 Grill light can use Electronic Ballast to light on T8 Tradtional Fluorescent tubes--18W 36W. Can be 118, 136,218,236,318,336,436 Traditional Grid Lamp Fixtures.

It also can be LED Grill/Grid T8 fixture when using LED 2835SMD into Fixture Directly. High brightness very much and good profermance.

Features of LED Grill Light:

1.Electronic or LED Grill Lamp fixture With Right Angle Appearance,looks modern and fashionable.
2.The T8 Grid Series Traditional lamp house is made of Excellent cold-rolled steel sheets through phosphating and electro-static coating.
3.All LED Grid Lamp Fixture , The reflector is made of Imported Aluminum and installed in a hard buckle type, with arc reflection, makes the Grid light more centralized, even and bright.
4.T8 LED Grill Light Reflector: Mirror Aluminum Louver and Matte Aluminum Louver Alternatively.

5. Whatever it is Electronic or LED Grill Light T8 fixture Type, Color Temperature are available: 3000/4000/6500K

LED Pendant

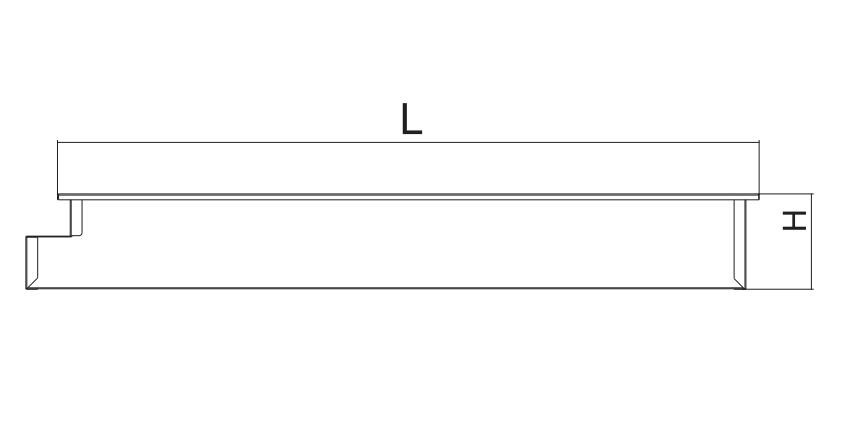

Product Parameter Of LED Grill Light:

Model	Dimension(mm)	Mounting Hole Distance(mm)	Confugutation	Watt	Qty/Ctn(pcs)	Packing Size(mm)	G.W.
SKYG-P118	595x185x85	57817090	Electronic/LED	1x18W	2	635200200	2.5
SKYG-P136	1195x185x85	117817090	Electronic/LED	1X36W	2	1245200200	4
SKYG-P218	595x295x80	57827890	Electronic/LED	2x18W	2	635310180	4.5
SKYG-P236	1195x295x80	117827890	Electronic/LED	2x36W	2	1245310180	6.7
SKYG-P318	595x595x80	57857890	Electronic/LED	3x18W	2	635180620	6.2
SKYG-P336	1195x595x80	117857890	Electronic/LED	3x36W	2	1245180620	12.5
SKYG-P418	595x595x80	57857890	Electronic/LED	4x18W	2	635180620	6.3
SKYG-P436	1195x595x80	117857890	Electronic/LED	4x36W	2	1245180620	13

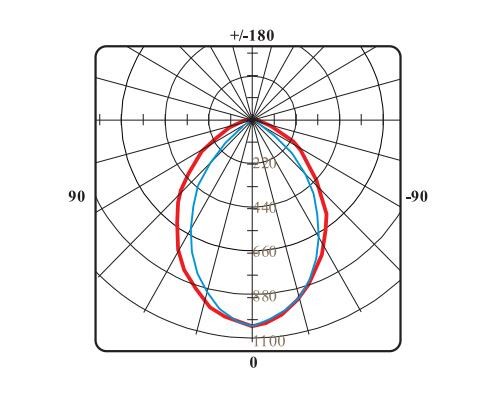

T8 Series Grid Light Photometric Distribution:

Professional Office LED Ceiling Grid Lights T8 Grid Fixture SMD 2835 Chip

More other type LED Grill lamp are available in our website if you are not satisfied this one.
