200W 140lm/w LED Street Light 3030 Cree Chips IP66 Horizontal Road
Light High Power Road Light 5 Years Warranty
Application Of LED Street Light:
Our LED Street Lights can be Suitable for Factory, Garden, highway
toll station, gas station,
Road Light, exhibition hall, gymnasium, Car Parking Area, Citizen
and other industrial and commercial
lighting purposes. More Stablely and Non-Maintanence.
Product Parameter:
| Model | SKLEDMZ7LD36W002C | SKLEDMZ7LD40W002C | SKLEDMZ7LD60W002C | SKLEDMZ7LD90W002C |
| Input Voltage | 100-277VAC 50/60Hz |
| Input Current | 0.12-0.4 | 0.13-0.44 | 0.2-0.67 | 0.3-1 |
| Input Watt(W) | 36±5% | 40±5% | 60±5% | 90±5% |
| Lumens(Lm) | 4160 | 5200 | 7800 | 11700 |
| CRI | 70 |
| Lumen Maintenance (2000Hrs) | 98% |
| IP Class | IP66 |
| Beam Angle | TYPEII-M TYPEIII-S |
| Working Temp. | -25℃--40℃ |
| Material | ADC12 |
| Storage Environment | -40℃~85℃ RH10%~95% |
| Model | SKLEDMZ7LD120W002C | SKLEDMZ7LD150W002C | SKLEDMZ7LD180W002C | SKLEDMZ7LD200W002C |
| Input Voltage | 100-277VAC 50/60Hz |
| Input Current | 0.4-1.33 | 0.5-1.67 | 0.16-2 | 0.67-2.22 |
| Input Watt(W) | 120±5% | 150±5% | 180±5% | 200±5% |
| Lumens(Lm) | 15000 | 19500 | 23400 | 26000 |
| CRI | 70 |
| Lumen Maintenance (2000Hrs) | 98% |
| IP Class | IP66 |
| Beam Angle | TYPEII-M TYPEIII-S |
| Working Temp. | -25℃--40℃ |
| Material | ADC12 |
| Storage Environment | -40℃~85℃ RH10%~95% |
| Model | SKLEDMZ7LD220W002C |
| Input Voltage | 100-277VAC 50/60Hz |
| Input Current | 0.73-2.44 |
| Input Watt(W) | 220±5% |
| Lumens(Lm) | 28600 |
| CRI | 70 |
| Lumen Maintenance (2000Hrs) | 98% |
| IP Class | IP66 |
| Beam Angle | TYPEII-M TYPEIII-S |
| Working Temp. | -25℃--40℃ |
| Material | ADC12 |
| Storage Environment | -40℃~85℃ RH10%~95% |
Product Size Of LED Street Light:
(36W/40W/60W/90W/120W as following size)
(150W/180W/200W/220W as following size)

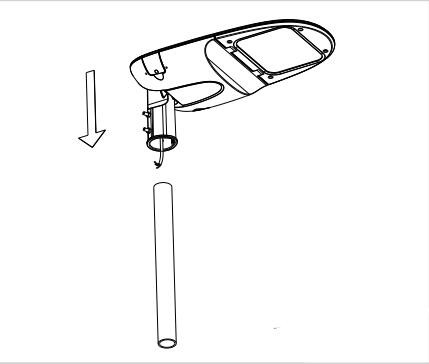

Installation Way of This Mini Streetlight
Horizontal Installation like as following picture
Vertical Installation like as following picture
Adjustable For any direction
Street Light Photometric Distribution:
(36W/40W/60W/90W as following chart)
(120W/150W/180W/200W/220W as following chart)
Features of Street Light:
1. High quality LED Streetlight Power suply 60w-240W are availabe
2. Our Street Lighting Ultr-high efficiency, up to 140lm/w.
3. All Street fixture power Adapting Original Lumileds 3030 SMD
chip, Inventronics driver, 5 years warranty.
4. All Road Lighting Fixtures Die casting aluminum housing with
good heat sink, suitable for hostile environment.
5. Our LED High Performance Streetlight had IP65 IP rating: closed
corrosion-proof silicone ring for dustproof and waterproof.
6. Street Lamp surface with patent design, corrosion-resistant,
shake-resistant and artistic appearance
7. Extremely Street light weight to enhance safety use and
installation, 10KV surge handing capability.
8. Special suiface treatment, suitable for sea side areas lighting
well.
9. Used as Parking Area Lighting or Road Light Eco-friendly: No
lead, mercury, UV interference
10. Long lifespan: more than 50000 hours, If LED works 11-12 hours
per day, it can work over 10 years.
11. Simple installation, easy disassembly, wide application.
12. Certificate: CE, RoHS, ETL,DLC
13. All Power IES File can be available.
14. Any projectors, we can offer free Dialux Design with our High
quality factory direct sale Streetlight.
Maintenance / Repairing Instructions:
1.Make sure LED Street Light power has been turned off before
maintenance or repairing.
2.Clean the Streetlight cover regularly to maintain high
transmission of light.
3.Clean up the Street lights dust from the cover and heatsink
regularly to keep sound heat
dispersion.
4.Be careful not to use water or corrosive solution for cleaning
LED Street Lighting Fixture, preferably with a dry cloth.(Because
all of our Flood Or Projector High power Street Lamps will be
tested by 24hrs under water, it is IP 65, can wash with water).
LED Street Lights Process:
